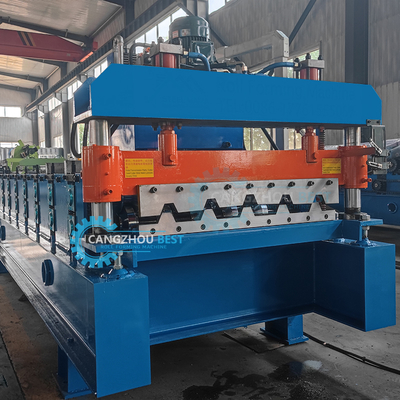

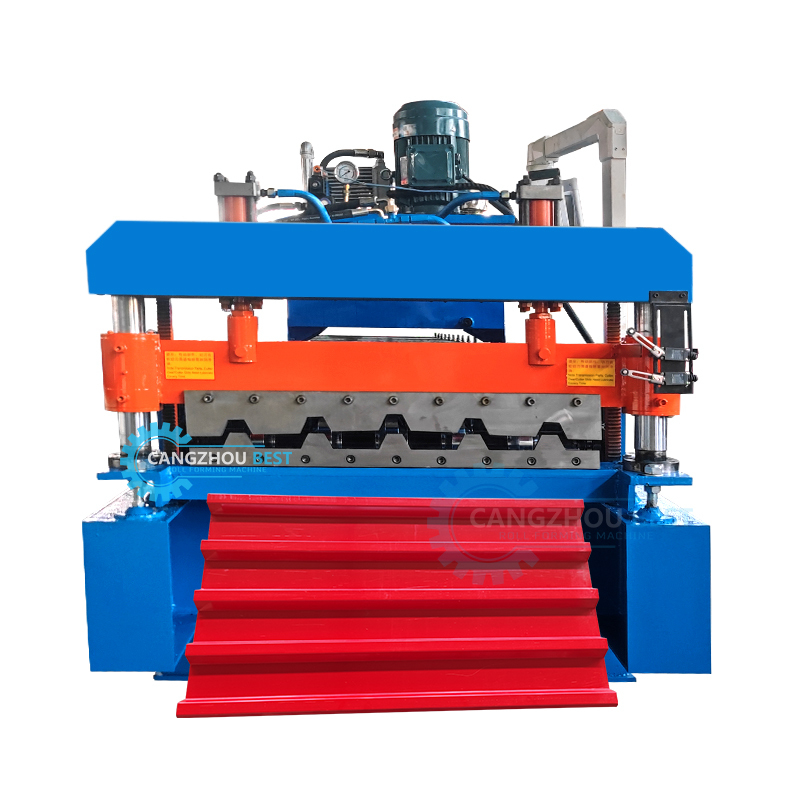

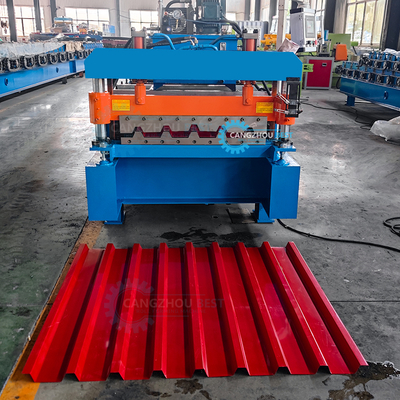

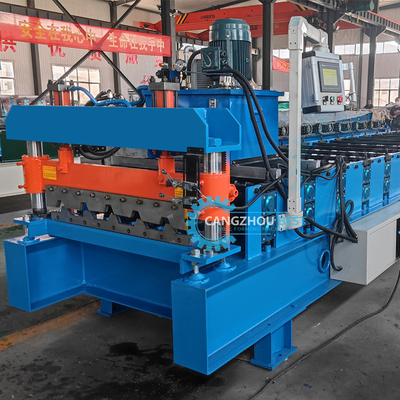

Double Layer Roof Tile Roll Forming Machine - Trapezoidal Tile Roof Board Wall Board Double Layer Machine
Product Specifications
| Attribute |
Value |
| Name |
Double Layer Roof Tile Roll Forming Machine Trapezoidal tile roof board wall board double layer machine |
| Material of roller |
45# steel polished and coated with chrome |
| Material of shaft |
45# steel polished and coated with chrome |
| Diameter of shaft |
70 mm |
| Frame panel thickness |
20 mm |
| Bottom frame |
350 H-section steel |
| Motor Power |
3kw |
| Raw material |
0.3-0.8 mm |
Product Description
Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof and wall sheets are new building materials with various thicknesses and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, and exhibition centers.
Working Flow:
Decoiler → Feeding → Roll forming → Cut to length → Output table
Main Technical Parameters
1. DECOILER
- Max. Width: 1250 mm
- Inner Diameter: Φ450 - Φ550 mm
- Out Diameter: 1500 mm
- Max. Loading Capacity: 5000 kgs

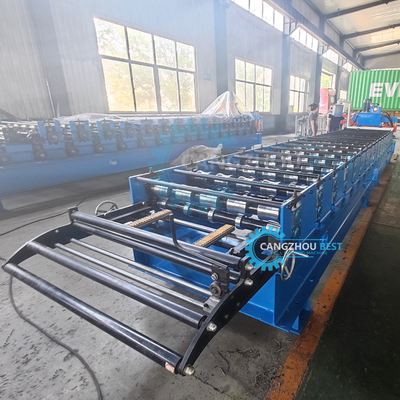

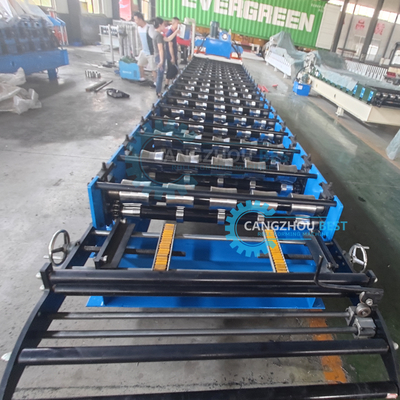

2. ROLL FORMING MACHINE
- Material Thickness: 0.2-0.8mm PPGI and GI
- NO. of roller Stations: 16 groups
- Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
- Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
- Diameter of shaft: 70mm
- Frame panel thickness: 20mm
- Bottom frame: 350 H-section steel
- Motor Power: 3kw
- Driven type: 1＂Chain
- Speed: 8-12m/min
3. CUT-OFF DEVICE
- Material for Cut-Off Modular: Cr12 steel after treatment
- Hardness for Heat Treatment: HRC55 - 60°
- Cut-Off Type: Hydraulic, Automatic Cut-Off
- Motor for Hydraulic Stand: 3 kW
4. PLC CONTROL BOX
- Type: PLC Frequency Control System with touch screen
- PLC Brand: Delta
- Encoder Brand: Omron
- Length Error: ±2mm
- Voltage: 380v/50HZ, 3Phase
Working Conditions
1. Working size: 22m x 2m x 4m
2. Power supply: 6kw
3. Frequency: 50-60HZ
4. Wires/cables: 4-6mm² (length according to workshop)
5. Labor cost: 2 workers
6. Tools: Spanners and screwdriver
7. Lift device: 3-5t forklift or crane
Installation and Training
1. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and video to teach you to install and operate.
3. If buyer needs our technician to go to your local factory, please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
Our Factory
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine. Our professional engineer engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept.
We Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine, slitting machine, bending and cutting machine, some auxiliary equipment.
