High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine
High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

Μεγάλες Εικόνας :  High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα, Hebei
Μάρκα: CHBEST
Πιστοποίηση: CE.ISO
Αριθμό μοντέλου: Chbest-50
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 σύνοδος
Τιμή: USD+16000+SET
Συσκευασία λεπτομέρειες: Πλαστική μεμβράνη για γυμνό μηχάνημα
Χρόνος παράδοσης: 20-35 ημέρες
Όροι πληρωμής: L/C, D/A, D/P, Western Union, MoneyGram
Δυνατότητα προσφοράς: 15SETS/μήνα

High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine

περιγραφή
Ονομα: Διπλή γραμμή Stud & Track Steel Profel Punching τύπος: Υδραυλικός
Σύστημα ελέγχου: PLC Διάρκεια ζωής: 10
Εγγύηση: 2 ετών Τύπος κοπής: πετώντας πριόνι
Επισημαίνω:

high speed drywall stud roll forming machine

,

non-stop track roll forming machine

,

25m/min stud and track former

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine





Rollers

High quality rollers will help to produce the beautiful

and high quality profile.That will satisfy your

customers.Using high qualiy thick shaft,

the strength is more durable.





Machine body

The main body of the body without welding, all the use of cast steel, prevent the host body deformation.

High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine 0



PLC Control System

Usually we prodvide the Delta PLC control system,

but we can make that according to your need.



Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm



tem Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 12stations(according to the profiles)
Machine rollers high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)

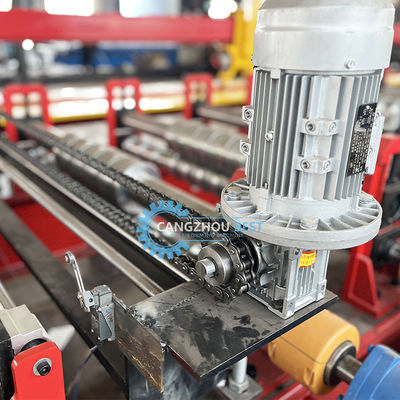

Driving system 1 inch chain or gear box(option)
Machine power 5.5kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm



Cutting



Type Mould type

Blade material Cr12mov quenching and grinding
Frame processing the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type



Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
Packing Detall
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.



High Speed Non Stop 25m/min Drywall Stud And Track Roll Forming Machine 1
